1. For BJT power transistors, the collector terminal is always connected to the transistor's case

• A) for easy circuit connection.
• B) to prevent shorts.
• C) because the collector terminal is the critical terminal for heat dissipation.
• D) because the collector terminal is located nearest the case.

2. Quiescent power is the power dissipation of a transistor

• A) with no signal input.
• B) with no load.
• C) under full load.
• D) along the dc load line.

3. A class B amplifier operates in the linear region for

• A) slightly more than 180° of the input cycle.
• B) 360° of the input cycle.
• C) slightly less than 180° of the input cycle.
• D) much less than 180° of the input cycle.

4. In a class AB amplifier, if the V_BE drops are not matched to the diode drops or if the diodes are not in thermal equilibrium with the transistors, this can result in

• A) a current mirror.
• B) diode separation.
• C) crossover distortion.
• D) thermal runaway.

5. Which amplifier is commonly used as a frequency multiplier?

• A) class A
• B) class B
• C) class C
• D) all of the above

6. The least efficient amplifier among all classes is

• A) class B.
• B) class A.
• C) class AB.
• D) class C.

7. A class A amplifier has a voltage gain of 30 and a current gain of 25. What is the power gain?

• A) 30
• B) 25
• C) 1.2
• D) 750

8. You have an application for a power amplifier to operate on FM radio frequencies. The most likely choice would be a _____ amplifier.

• A) class A
• B) class B
• C) class C
• D) class AB

9. A class A amplifier with R_C = 3.3 kΩ and R_E = 1.2 kΩ has a V_CC = 20 V. Find I_C(sat).

• A) 4.4 mA
• B) 6.1 mA
• C) 16.7 mA
• D) 20 mA

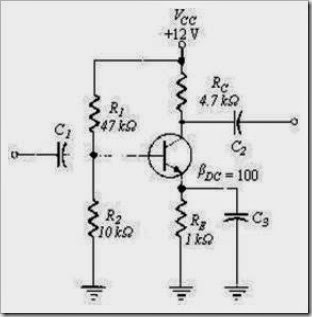

10. Refer to Figure 7-1. The dc voltage on the collector, V_C, is

Figure 7-1

• A) 5.4 V.
• B) 6.6 V.
• C) 12 V.
• D) 0 V.

11. Refer to Figure 9-1. This amplifier is operating as a _____ amplifier.

• A) class A
• B) class B
• C) class AB
• D) class C

12. Refer to Figure 7-2. This amplifier is operating as a _____ amplifier.

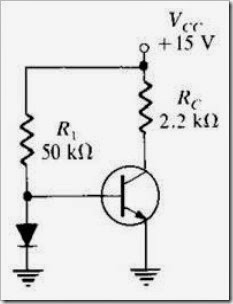

Figure 7-2

• A) class A
• B) class B
• C) class AB
• D) class C

13. Refer to Figure 7-2. The approximate voltages on the base, collector, and emitter, respectively, are

• A) 0.7 V, 6.8 V, 0 V.
• B) 0 V, 0 V, 0 V.
• C) 0.7 V, 15 V, 0 V.
• D) 0.7 V, 0 V, 15 V.

14. Refer to Figure 7-2. The maximum efficiency of this amplifier is

• A) about 25%.
• B) about 78%.
• C) about 70%.
• D) about 100%.

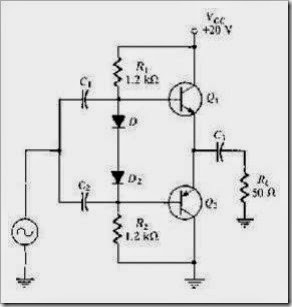

15. Refer to Figure 7-3. Determine V_B1.

Figure 7-3

• A) 0 V
• B) 0.7 V
• C) 9.3 V
• D) 10.7 V

16. Refer to Figure 7-3. Calculate V_B2.

• A) 0 V
• B) 0.7 V
• C) 9.3 V
• D) 10.7 V

17. Refer to Figure 7-3. You have an oscilloscope across R_L and it shows a zero signal voltage. The problem might be that

• A) C₃ is open.
• B) BE₁ is open.
• C) BE₂ is open.
• D) R₁ is open.

18. Refer to Figure 7-3. You find that this amplifier only shows the negative alternation at the output. The possible trouble might be that

• A) C₃ is shorted.
• B) BE₁ is open.
• C) BE₂ is open.
• D) R₁ is open.

19. Refer to Figure 7-3. You find that there is no output signal. You measure the dc voltage of Q₁ emitter and find it equal to 0 V. The trouble might be

• A) D₁ is shorted.
• B) D₂ is shorted.
• C) R₁ is open.
• D) no trouble, everything is normal.

20. Refer to Figure 7-3. You find that there is an input signal on the base of Q₁ and Q₂. However, there is no output signal. You then measure the dc voltages on Q₂ and find them to be all 0 V. The possible trouble might be

• A) C₃ is shorted.
• B) C₁ is open.
• C) R_L is shorted.
• D) V_CC is 0 V.

21. A class C amplifier has a tank circuit in the output. The amplifier is conducting only 28°. The output voltage is

• A) 0 V.
• B) a dc value equal to V_CC.
• C) a sine wave.
• D) a square wave with a frequency determined by the tank.

22. In practice, the efficiency of a capacitively coupled class A amplifier is about _____%.

• A) 25
• B) 40
• C) 70
• D) 10

23. The Q-point is at cutoff for class _____ operation.

• A) A
• B) B
• C) C
• D) AB

24. Class _____ amplifiers are normally operated in a push-pull configuration in order to produce an output that is a replica of the input.

• A) A
• B) B
• C) C
• D) AB

25. The maximum efficiency of a class B amplifier is _____ percent.

• A) 50
• B) 25
• C) 70
• D) 79

26. A class _____ amplifier is biased slightly above cutoff and operates in the linear region for slightly more than 180º of the input cycle.

• A) A
• B) B
• C) C
• D) AB

27. Which class of amplifier operates in the linear region for only a small part of the input cycle?

• A) A
• B) B
• C) C
• D) AB

28. The principal advantage(s) of MOSFETs over BJTs is (are)

• A) their biasing networks are simpler.
• B) their drive requirements are simpler.
• C) they can be connected in parallel for added drive capability.
• D) all of the above

29. The principal advantage(s) of BJTs over MOSFETs is (are) that

• A) voltage drop across the transistor is important.
• B) they are not as prone to ESD.
• C) both of the above
• D) none of the above

30. The class _____ amplifier is biased below cutoff.

• A) A
• B) AB
• C) B
• D) C
