Practice Quiz in Field Effect Transistor Devices Part 1

This is the Online Practice Quiz in Field Effect Transistor Devices Part 1 from the book, Electronic Devices and Circuit Theory 10th Edition by Robert L. Boylestad. If you are looking for a reviewer in Electronics Engineering this will definitely help. I can assure you that this will be a great help in reviewing the book in preparation for your Board Exam. Make sure to familiarize each and every questions to increase the chance of passing the ECE Board Exam.

Start Part I of the Online Practice Quiz

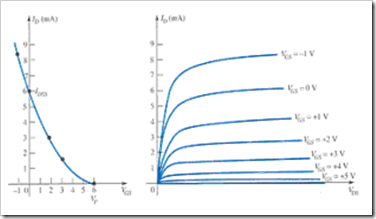

Quiz in Field Effect Transistor Devices Question 1. Which of the following is (are) the advantage(s) of VMOS over MOSFETs? A. Reduced channel resistance B. Higher current and power ratings C. Faster switching time D. All of these Question 2. How many terminals can a MOSFET have? A. 2 B. 3 C. 4 D. 3 or 4 Question 3. Refer to the following curves. Calculate ID at VGS = 1 V. A. 8.167 mA B. 4.167 mA C. 6.167 mA D. 0.616 mA Question 4. The three terminals of the JFET are the _____, _____, and _____. A. gate, collector, emitter B. base, collector, emitter C. gate, drain, source D. gate, drain, emitter Question 5. Which of the following is (are) not an FET? A. n-channel B. p-channel C. p-n channel D. n-channel and p-channel Question 6. Which of the following controls the level of ID? A. VGS B. VDS C. IG D. VDG Question 7. The region to the left of the pinch-off locus is referred to as the _____ region. A. saturation B. cutoff C. ohmic D. All of these Question 8. It is the insulating layer of _____ in the MOSFET construction that accounts for the very desirable high input impedance of the device. A. SiO B. GaAs C. SiO2 D. HCl Question 9. The transfer curve is not defined by Shockley's equation for the _____. A. JFET B. depletion-type MOSFET C. enhancement-type MOSFET D. BJT Question 10. Which of the following input impedances is not valid for a JFET? A. 1010 Ω B. 109 Ω C. 108 Ω D. 1011 Ω

More Practice Quiz in Field Effect Transistor Devices

Practice Quiz Part 1

Practice Quiz Part 2

Practice Quiz Part 3

Practice Quiz Part 4

Practice Quiz Part 5

Practice Quiz Part 6

See: Complete List of Practice Quizzes

Note: After taking this particular quiz, you can proceed to check all the topics.
