Practice Quiz in Diode Applications Part 4

This is the Online Practice Quiz in Diode Applications Part 4 from the book, Electronic Devices and Circuit Theory 10th Edition by Robert L. Boylestad. If you are looking for a reviewer in Electronics Engineering this will definitely help. I can assure you that this will be a great help in reviewing the book in preparation for your Board Exam. Make sure to familiarize each and every questions to increase the chance of passing the ECE Board Exam.

Continue Part IV of the Online Practice Quiz

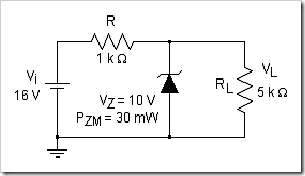

Quiz in Diode Applications Question 31. In a particular problem, which mode has the highest level of IDQ? A. Ideal B. Approximate equivalent C. Exact mode using characteristic curve D. None of these Question 32. Calculate IL and IZ. A. 2 mA, 0 mA B. 4 mA, 2 mA C. 2 mA, 2 mA D. 2 mA, 4 mA Question 33. What is the peak inverse voltage across each diode in a voltage doubler? A. Vm B. 2Vm C. 0.5Vm D. 0.25Vm Question 34. What best describes the circuit? A. Full-wave rectifier B. Half-wave rectifier C. Clipper D. Clamper Question 35. Determine the peak for both half cycles of the output waveform. A. 16 V, –4 V B. 16 V, 4 V C. –16 V, 4 V D. –16 V, –4 V Question 36. Zener diodes are used in regulator networks to _____. A. generate voltage B. consume power C. maintain a fixed voltage across the load resistor D. protect the load Question 37. The intersection of the load line with the characteristic curve determines the _____ of the system. A. point of operation B. load-line analysis C. characteristic curve D. forward bias Question 38. A diode is in the _____ state if the current established by the applied sources is such that its direction matches that of the arrow in the diode symbol and VD > 0.7 V. A. off B. reverse bias C. on D. transition Question 39. The x-intercept of the load line with the characteristic curve is determined by the _____. A. load resistor B. diode C. source voltage and the load resistor D. source voltage Question 40. As the load resistor increases, the slope of the dc load line and the levels of diode current _____. A. increase B. decrease C. remain unchanged D. are unpredictable
