Practice Quiz in Field Effect Transistor Amplifiers Part 2

This is the Online Practice Quiz in Field Effect Transistor Amplifiers Part 2 from the book, Electronic Devices and Circuit Theory 10th Edition by Robert L. Boylestad. If you are looking for a reviewer in Electronics Engineering this will definitely help. I can assure you that this will be a great help in reviewing the book in preparation for your Board Exam. Make sure to familiarize each and every questions to increase the chance of passing the ECE Board Exam.

Continue Part II of the Online Practice Quiz

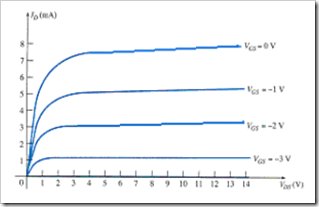

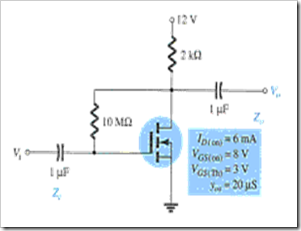

Quiz in Field Effect Transistor Amplifiers Question 11. Which of the following is (are) related to depletion-type MOSFETs? A. VGSQ can be negative, zero, or positive. B. gm can be greater or smaller than gm0’. C. ID can be larger than IDSS’. D. All of these Question 12. Use the following equation to calculate gm for a JFET having IDSS = 10 mA, VP = –5 V, and VGSQ = –2.5 V. A. 2 mS B. 3 mS C. 4 mS D. 5 mS Question 13. For what value of ID is gm equal to 0.5 gm0? A. 0 mA B. 0.25 IDSS C. 0.5 IDSS D. IDSS Question 14. Referring to the figure below, determine the output impedance for VGS = –3 V at VDS = 5 V. A. 100 kΩ B. 80 kΩ C. 25 kΩ D. 5 kΩ Question 15. The more horizontal the characteristic curves on the drain characteristics, the ________ the output impedance. A. less B. same C. greater D. None of these Question 16. For the fixed-bias configuration, if rd < 10 • RD, then Zo = ________. A. RD B. RD || rd C. RG D. -gm • (RD || rd) Question 17. On which of the following parameters does rd have no or little impact in a source-follower configuration? A. Zi B. Zo C. Av D. All of these Question 18. For an FET small-signal amplifier, one could go about troubleshooting a circuit by ________. A. viewing the circuit board for poor solder joints B. using a dc meter C. applying a test ac signal D. All of these Question 19. What is the typical value for the input impedance Zi for JFETs? A. 100 kΩ B. 1 MΩ C. 10 MΩ D. 1000 MΩ Question 20. Referring to this figure, calculate Zo if rd = 19 kΩ. A. 1.75 kΩ B. 1.81 kΩ C. 1.92 kΩ D. 2.00 kΩ
