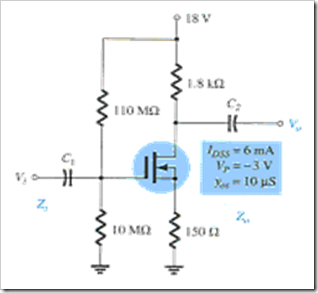

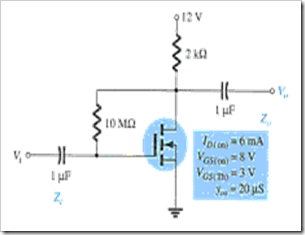

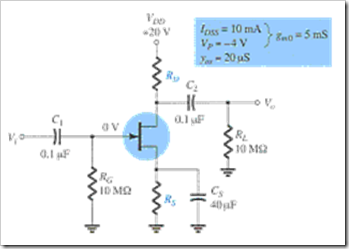

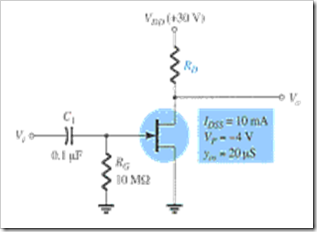

Quiz in Field Effect Transistor Amplifiers Question 21. The E-MOSFET is quite popular in ________ applications. A. digital circuitry B. high-frequency C. buffering D. All of these Question 22. Referring to this figure, calculate the value of RD if the ac gain is 10. Assume VGSQ = ¼Vp. A. 2.2 kΩ B. 2.42 kΩ C. 2.62 kΩ D. 2.82 kΩ Question 23. Referring to this figure, calculate Av if rd = 19 kΩ. A. –2.85 B. –3.26 C. –2.95 D. –3.21 Question 24. When VGS = 0.5 Vp gm is ________ the maximum value. A. one-fourth B. one-half C. three-fourths D. None of these Question 25. Which of the following is a required condition to simplify the equations for Zo and Av for the self-bias configuration? A. rd ≤ 10RD B. rd = RD C. rd ≥ 10RD D. None of these Question 26. The steeper the slope of the ID versus VGS curve, the ________ the level of gm. A. less B. same C. greater D. None of these Question 27. Referring to this figure, calculate Av for yos = 58 µS. A. –7.29 B. –7.50 C. –8.05 D. –8.55 Question 28. Determine the value for RD if the ac gain is 8. A. 1.51 kΩ B. 1.65 kΩ C. 1.85 kΩ D. 2.08 kΩ Question 29. Referring to this figure, find Zo if yos = 20 µS. A. 1.85 kΩ B. 1.92 kΩ C. 2.05 kΩ D. 2.15 kΩ Question 30. Referring to the transfer characteristics shown below, calculate gm at VGSQ = –1 V. A. 2 mS B. 3 mS C. 4 mS D. 5 mS
